Light Socket T8 Non Shunted Lamp Holder
UL Listed | UL94-V0 | PC
Medium Bi-Pin light socket, non-shunted snap in socket with nut, low profile (standard) for most T8 fluorescent or LED fixtures. See our guide on retrofitting a T8 fluorescent fixture to a T8 LED lamp.
- UL94-V0 Rated
- Heat-Resistant Plastic
- G13 Lamp holder
- For T8 Fluorescent or LED Lights
- Listed: UL Listed, CE, and RoHS
| Base Type | T8 G13 Holder Socket (medium Bi-Pin) |
|---|---|
| Rated Voltage | 110V /230V |
| Support max voltage | 600V |
| Max Watts | 660W |
| Materials | UL94-V0 rated PC |
| Finish | White |
| Shape | Tombstone |
| Listed | UL Listed, CE, RoHS |
| Warranty | 5 Years Rock Solid |
| Weight | 0.40 ounces/unit |

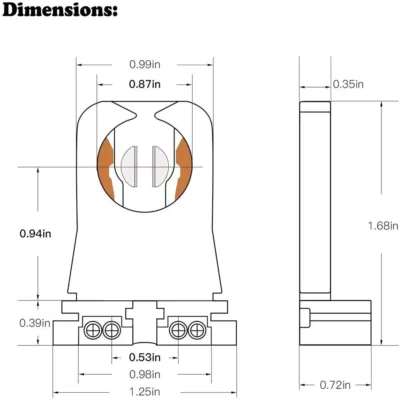

| Item Dimensions | 1.67 x 1.26 x 0.71 inches |
Order Information | T8 Non Shunted Lamp Holder | Light Socket
Sample: LT-T8-G13-NLH
Compliant Standard | LED Linear High Bay Lighting Fixtures | Light Socket
| Certificate | UL Listed, CE |
| EMC/FCC/IC Standard | EN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005 |
| Safety Stanard | UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1, UL924 |
