Light Socket T8 Non Shunted Lamp Holder
UL Listed | UL94-V0 | PC
Lightide cutting-edge Light Socket Adapter, T8 Non-Shunted Lamp Holder is engineered to provide superior performance, unwavering reliability, and the ultimate peace of mind.
- Medium Bi-Pin light socket,
- non-shunted snap in socket with nut,
- low profile (standard) for most T8 fluorescent or LED fixtures.
See our guide on retrofitting a T8 fluorescent fixture to a T8 LED lamp.
UL94-V0 Flame Retardant Material
Accidents happen, but our lamp holder is built to minimize risk. Constructed with UL94-V0 flame-retardant material, it self-extinguishes within 10 seconds, significantly reducing the spread of fire and protecting your property.
Why choose our T8 Non-Shunted Lamp Socket Adapters?
Discover the future of TV with OLED technology
Tired of flickering lights or unreliable connections? Looking for a safe, durable, and high-performance solution for your T8 fluorescent or LED tubes?
Robust & Durable Construction
Enjoy long-lasting performance and reliable connections, reducing the need for frequent replacements.
Designed for T8 Non-Shunted Tubes
Ideal for T8 LED tubes that require a direct wire connection (ballast bypass) or traditional T8 fluorescent tubes.
Easy Installation
Allows for quick and straightforward replacement or new installations. Get your lights up and running in no time!
-
UL94-V0 Rated
-
Heat-Resistant Plastic
-
G13 Lamp holder
-
For T8 Fluorescent or LED Lights
-
Listed: UL Listed, CE, and RoHS
Order Information | T8 Non Shunted Lamp Holder | Light Socket Adapter
Model#: LT-T8-G13-NLH
|
Base Type |
T8 G13 Holder Socket (medium Bi-Pin) |
|---|---|
|
Rated Voltage |
120V /230V |
|
Support max voltage |
600V |
|
Max Watts |
660W |
|
Materials |
UL94-V0 rated PC |
|
Finish |
White |
|
Shape |
Tombstone |
|
Listed |
UL Listed, CE, RoHS |
|
Warranty |
5 Years Rock Solid |
|
Weight |
0.40 ounces/unit |
|

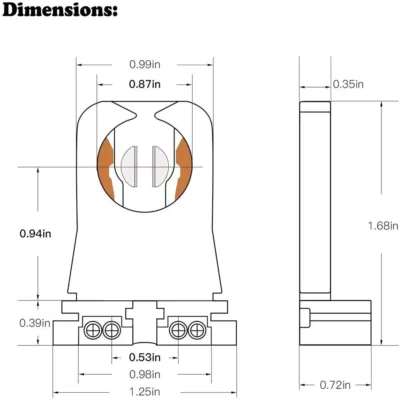

Item Dimensions |
1.68 x 1.25 x 0.72 inches |
Compliant Standard | LED Linear High Bay Lighting Fixtures | Light Socket Adapter
| Certificate | UL Listed, CE |
| EMC/FCC/IC Standard | EN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005 |
| Safety Stanard | UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1, UL924 |
